AGV Battery LiFePO4 Battery Pack 24V 50AH

Item No.: 00367
AGV battery LiFePO4 Battery Pack 24V 50AH Based On Conventional Trucks Feature for AGV battery LiFePO4 Battery Pack 24V 50AH Based On Conventional Trucks Various Aluminum lithium battery cell with high periformance
Description
Description

AGV battery LiFePO4 Battery Pack 24V 50AH Based On Conventional Trucks

Feature for AGV battery LiFePO4 Battery Pack 24V 50AH Based On Conventional Trucks

  1. Various Aluminum lithium battery cell with high periformance

  2. Excellent Electric Performance base on 100% A level new battery single cell

  3. Smar BMS with over charging /discharging protect, cell balance,abnormal alarm and short circle performance

  4. Safety Perfirmance no fire, no explosion leakage

  5. long cycle life about 3000 times on 80% DOD.

  6. AGV based on conventional trucks. 24V LFP lithium battery with integrated BMS.

Key Data for AGV battery LiFePO4 Battery Pack 24V 50AH Based On Conventional Trucks

Cell model 26650/3.7V/5Ah
Composed Type 8S15P
Nominal voltage 24V
Nominal capacity 50Ah
Charging voltage 29.2V
Charging temperature 0~45℃
Discharging temperature -20~60℃
Storage temperature -20~60 ℃
Dimension 385*190*223mm
Application E-bike, E-Motorcycle, AGV, patrol robot, etc.



Spcification for Battery Pack

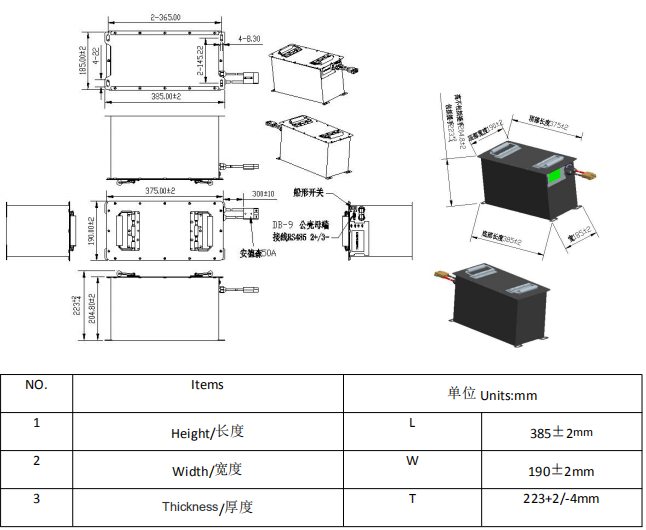

Engineer Drawing for AGV battery LiFePO4 Battery Pack 24V 50AH Based On Conventional Trucks

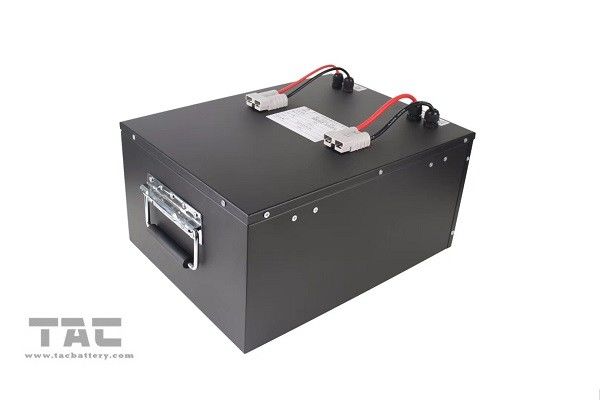

Battery Picture:
