3.2V LiFePO4 Battery 150ah With Long Service Life Design

Item No.: 00284
3.2V LiFePO4 Battery 150ah with Long Service Life Design for Containerized ESS Feature for 3.2V LiFePO4 Battery 150ah with Long Service Life Design for Containerized ESS The capacity retention rate≥80%@4500cycles
Description
Description

3.2V LiFePO4 Battery 150ah  with Long Service Life Design for Containerized ESS



Feature for 3.2V LiFePO4 Battery 150ah  with Long Service Life Design for Containerized ESS



  1. The capacity retention rate≥80%@4500cycles, ≥70%@7000cycles

  2. High capacity 150 ah for single cell

  3. Specially Design of Applicable for Various ES Solutions

  4. Hot design Square Aluminum Shell

Specification for 3.2V LiFePO4 Battery 150ah with Long Service Life Design for Containerized ESS

NO. Item Specification Remark
1 Nominal Capacity 150Ah

0.2C, CC(constant current)discharge to 2.0V cut

off, at 23±3℃

2 Nominal Voltage 3.2V
3 Standard Charging Current 0.2C

0~45℃0.2CCC(constant current)charged to

3.6V,then CV(constant voltage 3.6V)charge till

charge current ≤0.02C

4 Max. Charging Current 1.0C
5 Charge Ending Voltage 3.6V
6 Standard Discharging Current 0.2C

0.2CCC(con

constant current)discharged to 2.0V

7 Max. Continual Discharging
Current
2.0C
8 Discharge Ending Voltage 2.0V
9 Standard Charging Time 5~6h
10 Rapid Charging Time 1~2h
11 Production Impedance ≤30mΩ AC Impedance 1KHz
12 Battery Weight ≤ 500g No include box





Specially Packing Detail

1 pcs put in plastic tray, , 10 trays shrink together to avoid short circle and vabration

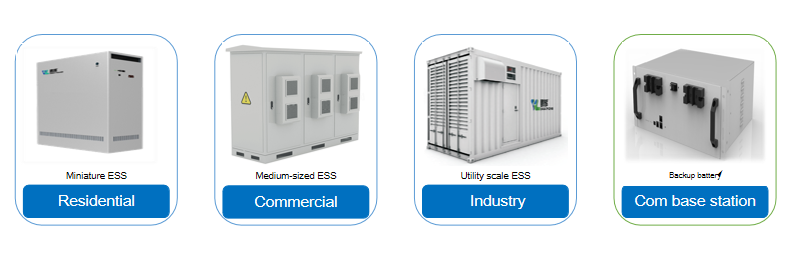

Application for LiFePO4 Battery Square Cell

The single cell will be assembled to various ESS

Solar energy storage,Home wall ,home storage ,E-vehicle products.

solar street light,wind energy storage ,UPS



telecommunication power supply, photo voltaic power station







Picture for Singer Cell





The single cell were assembled to various battery pack





More Detail For Lifepo4 Battery

MODEL CAPACITY VOLTAGE mΩ≤ T W l
F7050125TP-2900 2900 3.2 2.4 6.94 50.19 126.89
F8054106SP-3000 3000 3.2 2.3 7.88 53.87 104.99
F706094-3000 3000 3.2 3.5 6.6 58.4 94.58
F6567102TP-3000 3000 3.2 2 6.31 67.17 103.56
F134295SP-3300 3300 3.2 2 12.32 42.05 96.97
F9044130TP-3300 3300 3.2 2.2 8.16 44.4 130.61
F7264110TP-3500 3500 3.2 2.2 7.41 64.95 112.51
F7567102TP-3500 3500 3.2 2 7.28 66.86 103.06
F106094TP-3600 3600 3.2 2.2 9.23 59.18 94.48
F8367102TP-3700 3700 3.2 2.0 7.65 67.25 103.7
F9045145TP-4000 4000 3.2 2 8.79 44.73 144.83
F9567102TP-4300 4300 3.2 2 8.85 66.97 102.38
F7075130HP-4600 4600 3.2 3 6.47 73.86 130.77
F1167102TP-5000 5000 3.2 2 10.29 66.88 104.08
F6884165TP-6000 6000 3.2 2 6.36 83.41 166.05
F76100115HP-6000 6000 3.2 2.5 7.1 98.75 116.08
F1257130HP-6100 6100 3.2 2.5 11.09 56.12 130.48
F7284165TP-6500 6500 3.2 2.2 6.97 83.41 164.65
F9570170TP-7000 7000 3.2 2.0 8.8 70.49 171.62
F9084165TP-8000 8000 3.2 1.8 8.42 83.37 166.38
F8590150HP-8000 8000 3.2 2 7.87 88.62 150.41
F1284165SP-10000 10000 3.2 2 10.85 84.46 165.75
F95130140HP-12000 12000 3.2 1.8 8.66 129.73 140.73
F65160220-17000 17000 3.2 2.5 5.96 158.07 219.03
